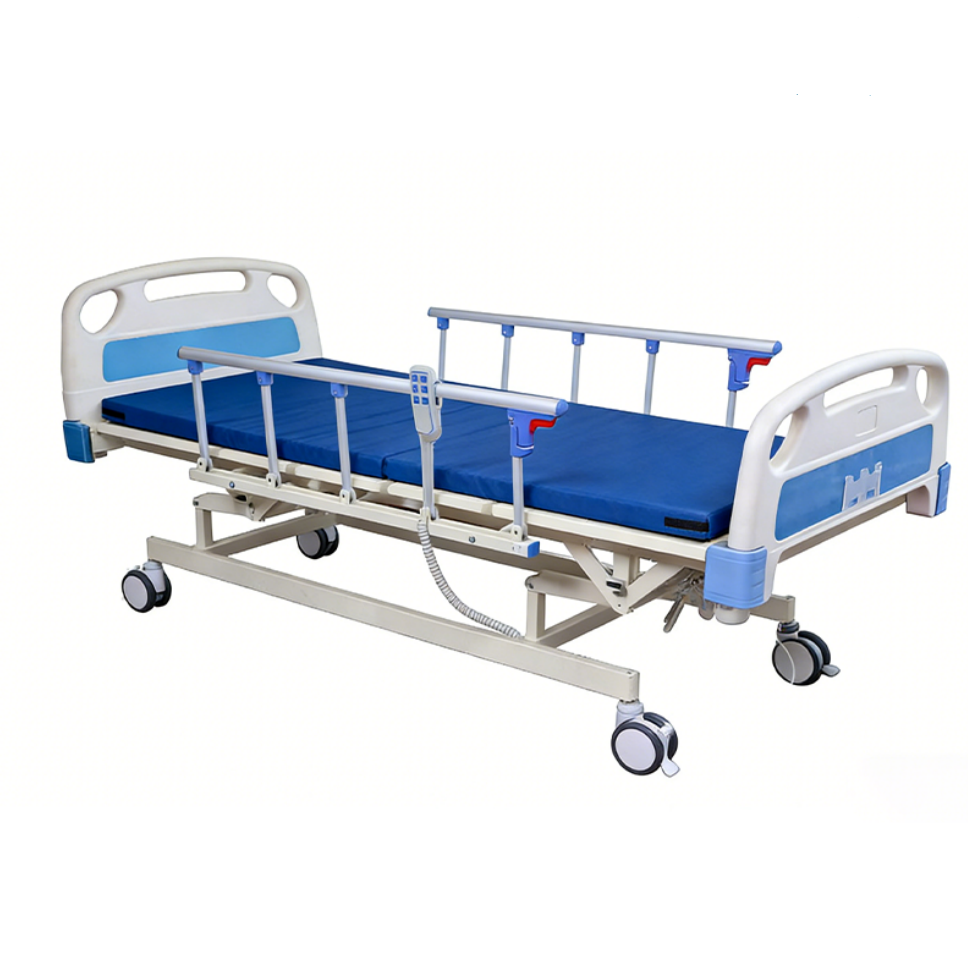

Electric 3-Function Hospital Bed
Technical Specification Sheet
1. Basic Info
– Product Name: Electric 3-Function Hospital Bed
– Functions:
1. Backrest up/down (electric)
2. Leg rest up/down (electric)
3. Whole bed height adjustment (electric)
– Application: Hospital, clinic, nursing home, home care
– Voltage: DC 24V (safe low voltage)
– Adjustment: By remote control & hand controller
2. Adjustable Range
– Backrest angle: 0° ~ 75°
– Leg rest angle: 0° ~ 45°
– Bed height adjustment: 400mm – 700mm (adjustable range: 300mm)
3. Bed Surface
– Bed surface material: Cold-rolled steel plate
– Surface treatment: Electrostatic spraying
– Color: White / Ivory white
4. Frame & Structure
– Frame: High-strength steel
– Load capacity: ≥ 240 kg
– Bed panel: Split-type, durable
5. Guardrails
– Type: Aluminum alloy / Stainless steel folding guardrail (optional)
– Quantity: 5 pieces
– Function: Foldable, safe, anti-fall
6. Castors
– Diameter: 5″ (125 mm)
– Quantity: 4 pcs
– Function: Silent, with brake, 360° swivel
7. Motors
– Motor type: Quiet electric linear actuator
– Noise level: ≤ 60 dB
– Life: Long service life, stable operation
8. Overall Dimensions (approx.)
– Length: 2020 mm
– Width: 970 mm
– Height: 400 – 700 mm (adjustable)
9. Features Summary
– Electric 3-function adjustment
– Safe, stable, durable structure
– Silent motor & smooth movement
– Easy to operate (hand control / remote)
– With folding guardrails & locking castors
– Suitable for hospital & home care
